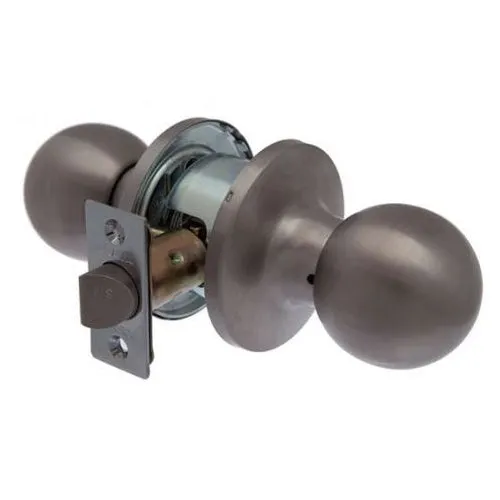

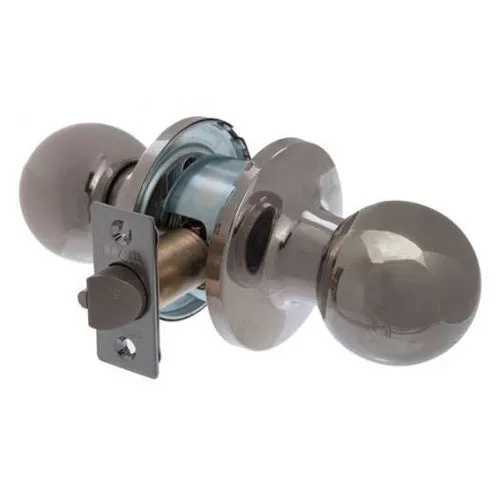

BRAVA Metro RA3000 series commercial grade tiebolt 60-70 mm passage knobset.
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Passage function
- Both outside and inside knobs are always free.
Additional info
- Tiebolt concealed fixing.
- Boxed and colour coded.
- Finished in satin stainless steel, polished stainless steel or polished brass.
| Door thickness | 35mm - 45mm |
| Backset | 60/70mm adjustable latch |
|
max. Lever / knob projection distance may not include turnsnib |
73mm |
| Strike | 70mm x 28mm x 2mm |
| Latch | 60/70mm adjustable |
| Latch face plate | 25mm x 57mm |
| Door handing | Non-handed levers |
| Rose | 75mm |
